StaffOpen-Ceiling Audio Design: Why coverage consistency is driving distributed loudspeaker specifications in luxury commercial retail and hospitality projects courtesy of SoundTube.
As exposed ceilings become the norm across retail and hospitality environments, audio design priorities are shifting. Coverage consistency, intelligibility and installation efficiency are now front and centre in commercial loudspeaker specification.
Exposed-structure ceilings have moved from design trend to accepted standard across retail, hospitality, fitness and mixed-use commercial spaces. With that architectural shift has come a corresponding evolution in audio system design. Rather than concealing loudspeakers within suspended drywall ceilings, integrators and consultants are now working within open environments where hardware is visible and acoustic conditions are far less predictable.
The result is renewed focus on dispersion control, intelligibility and uniform coverage.
In open-ceiling applications, systems must perform in spaces that typically feature higher ambient noise levels, reflective surfaces and flexible usage patterns. Restaurants may transition from daytime background music to evening entertainment. Fitness centres operate at consistently elevated volume levels. Retail environments depend on distributed messaging and music to reinforce brand identity.
In these scenarios, the design objective is rarely maximum output. More often, it is achieving even coverage without hotspots or dead zones, while maintaining a clean and intentional architectural aesthetic.
Distributed pendant loudspeakers have gained traction in response to these demands. Suspended from exposed ceilings, they offer predictable coverage geometry and allow designers to maintain consistent spacing and output across wide areas. In doing so, they address one of the core challenges of open architecture: controlling how sound behaves in large, reflective volumes.

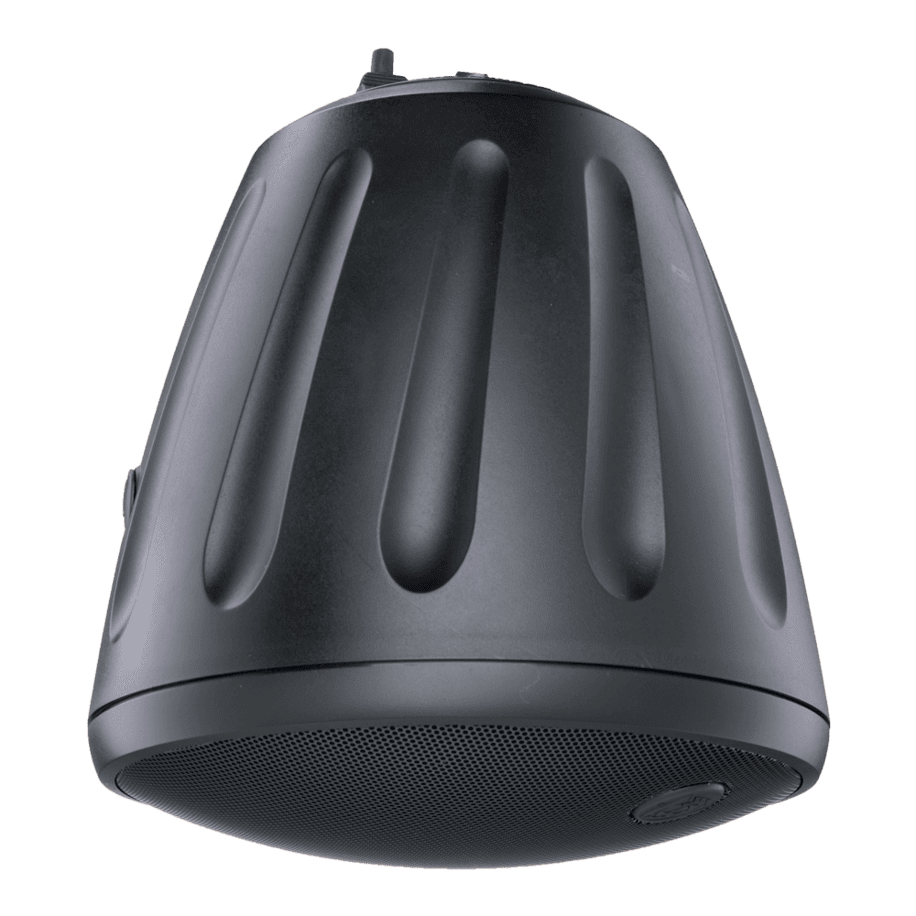

SoundTube Entertainment positions its RS600i pendant loudspeaker squarely within this category of application. The two-way, ported open-ceiling design incorporates a 6.5-in polypropylene woofer and a 1-in convex titanium tweeter with Ferrofluid cooling, mounted to a proprietary cast-aluminium baffle and heat sink. The system delivers usable low-frequency extension to 58 Hz (±10 dB) and maintains a consistent 100° dispersion pattern across the critical 2–10 kHz range, independently verified.
Dispersion characteristics are central to its intended use. In open-ceiling environments, maintaining uniform high-frequency coverage is essential for speech intelligibility and balanced music reproduction. The RS600i utilises SoundTube’s BroadBeam waveguide technology to maintain consistent off-axis performance across the listening area. Combined with ZeroReflection enclosure technology, the design supports cabinet rigidity and controlled acoustic behaviour in exposed installations.
Measured sensitivity is 88.5 dB (1 W / 1 m), with 90 W continuous power handling and maximum output of 108 dB at 1 m. This performance profile positions the loudspeaker for background to mid-level SPL environments where clarity and even distribution are prioritised over sheer output. A six-position selectable tap switch supports 25 V, 70.7 V and 100 V distributed systems, alongside a transformer bypass position for 8-ohm operation, providing flexibility across commercial project types.
“The challenge in open-ceiling design isn’t simply achieving sufficient level,” says Peter Melvin, Vice President at SoundTube. “It’s delivering consistent coverage in spaces where ceiling height, reflective materials and changing use patterns all influence how sound behaves. Dispersion control becomes a design tool.”
Installation considerations also play a growing role in specification decisions. The RS600i includes UL-listed galvanised steel hanging hardware with integrated SpeedClamp self-locking cable grips and a secondary safety cable, along with a Euroblock connector and weather-resistant terminal boot. The injection-moulded, glass-reinforced ABS enclosure and powder-coated steel grille are designed for durability in both indoor and outdoor installations.
For projects requiring extended low-frequency performance, the RS600i can be paired with SoundTube’s RS1201i-SuperT subwoofer. Delivering low-frequency response from 32 Hz to 200 Hz (±10 dB, independently verified) and peak output of 113 dB, the subwoofer allows integrators to scale distributed systems for more music-led applications without altering overall coverage geometry.
As open ceilings continue to define commercial architecture, the conversation around loudspeaker specification is becoming less about concealment and more about control. In that context, consistent dispersion, predictable coverage and installation efficiency are increasingly driving the decision-making process.
The RS600i is available in black or white finishes through SoundTube’s authorised distribution network.
